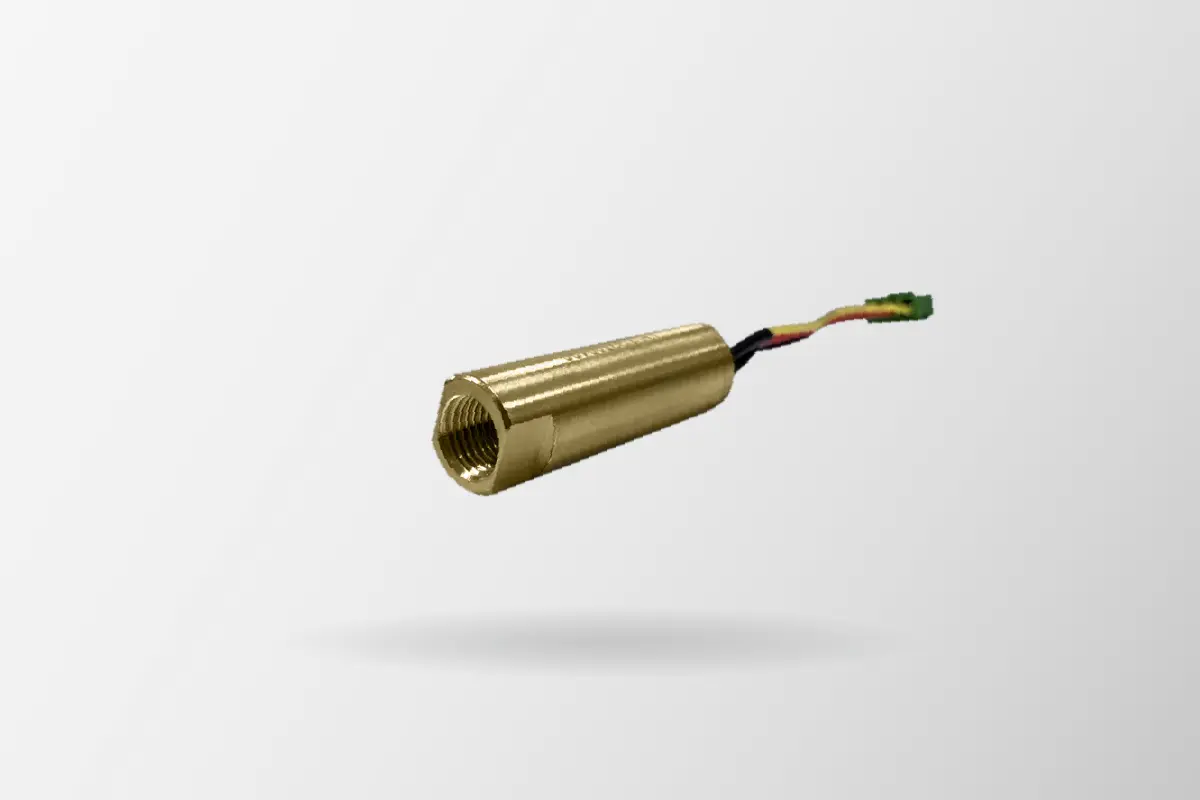

Home / Products / EEL / M6.5


Good optical quality, high stability, stable optical output power, high shock resistance coefficient.

MTTF >20,000 hours, small size and light weight. The optical axis deviation is small, and the measurement accuracy is improved.

M6.5 is a standard common size, which is suitable for initial product development and accelerates the production process.


  • Common public version, saving development costs
  • High stability
  • High seismic coefficient


  • Sensor
  • Sweeper robot
  • Barcode scanning
  • SLAM


Laser Wavelength According to
Customized Spec Sheet select
Input Voltage 2.2 ~ 3 V
Output Power According to
Customized Spec Sheet select
Operating Current Varies by LD type
Beam Size Varies with different focal lengths
Part No. Voltage Current Optical power Wavelength Download
AD65010010 2.4 ~ 3.2V 20mA 0.5 ~ 0.9mW 650nm
AD79040003 2.3V 28mA 4mW 793nm
AZ63120001 2.2 ~ 2.5V 44 ~ 55mA 12mW 637nm
AZ51010001 5.4 ~ 7V 60 ~ 100mA 10mW 515nm
AZ45850001 5.1 ~ 6V 84 ~ 120mA 85mW 450nm
