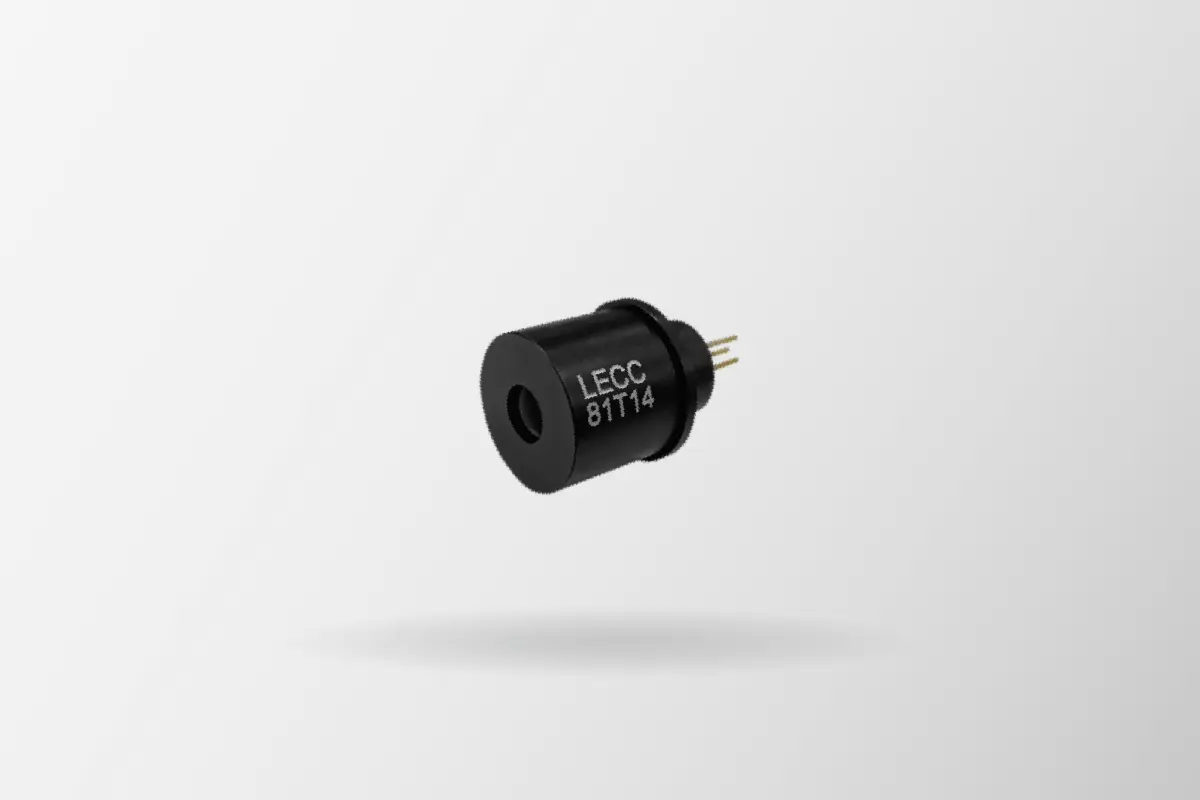

M12

Excellent heat dissipation effect, including APC circuit, with stable optical power output.

With aluminum anode appearance treatment, sturdy structure, high stability, and the appearance color can be customized according to customer needs.

One of the most common public version sizes of LECC, which saves customers the cost of molds in the early stage of development, and the manufacturing capacity that can be ordered and mass-produced at any time, saving your development time.

Feature

  • Stable power output
  • Different wavelengths can be customized on demand


Application

  • Medical measurement location
  • AR, VR, MR
  • Aiming device

Specification

Laser Wavelength According to
Customized Spec Sheet select
Input Voltage 3, 5, 6, 12 V
Output Power According to
Customized Spec Sheet select
Operating Current Varies by LD type
Beam Size Varies at different distances
Part No. Voltage Current Optical power Wavelength Download
AL52010001 3 ~ 5V 50mA 1 ~ 2mW 650nm
AL63010004 5V 100mA 0.4 ~ 0.9mW 655nm
AD82E00001 1.8 ~ 2.6V 170 ~ 240mA 140mW 825nm
S2018050701TA 12V 2,000 ~ 3,000mA 3,000mW 450nm
AD65280002 5V 140mA 22 ~ 28mW 658nm
