Position Aim

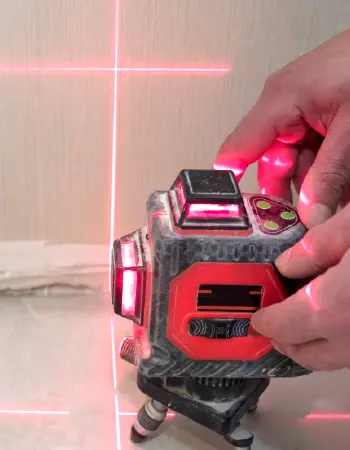

The laser marking device can be used for knife setting, line setting and marking of cutting machinery in stone, wood, paper, cloth, leather, glass, ceramics and other industries. It uses laser diodes with special optical mirrors and special regulated power supplies, which can be installed on vertical or horizontal planes of mechanical equipment. The light emitted is clear, bright, uniform in lines, and high in collimation. Under many special conditions, it can be achieve the desired effect.

LECC Technology can provide various applications with DOE and Powell LENS according to your design to make a variety of graphic changes, such as: dots, lines, crosses, squares or concentric circles, etc., to meet your special needs for products, let the laser position is more precise and reliable.


Part No. Voltage Current Optical power Wavelength Download
FD692046510B 5 ~ 9V 22mA 0.55 ~ 0.75mW 650nm
AD65010010 2.4 ~ 3.2V 20mA 0.5 ~ 0.9mW 650nm
AL63100001 3V 50mA 5 ~ 7mW 636nm
FD65506530A 3V 35mA 1.8 ~ 2.5mW 650nm
